Garage Door Troubleshooting
If you’ve been a homeowner for a while, you have probably experienced different parts of your home malfunctioning. Perhaps the dishwasher has groaned and creaked, the refrigerator has made gurgling sounds, or your home electronics have glitched. You may have even encountered your garage door opening by itself.
1. Scan the safety sensors and ensure they are clear of debris.
Modern garage door systems have safety features that open the door during the close cycle when they detect something blocking it. If the descending door hits an object, the motor detects the resistance, and the door opens. Likewise, if the beam of light between the floor sensors is broken, the door will not shut.
Items such as accumulated leaves, snow, or ice around the garage door can cause the door not to shut completely. Fortunately, there is usually a blinking light on the opener or at the door operator button that indicates a blockage at the door. However, if you don’t see any blockages, it’s also possible that a sensor has just gone bad and needs to be replaced.
Misalignment of the floor sensors or an accumulation of dirt can cause them not to work properly. Carefully examine the space around the door as well as the door tracks, as the sensors can be misaligned if the tracks are bumped or bent. Also, check the condition of the wires at the sensors and the connections.
2. Examine the garage door opener.
If your garage door opens by itself, troubleshoot the garage door opener button. The button can easily get dirty and stuck in the “pushed” position, so make sure it’s clean and free of debris. Once unstuck, the door should function normally again.

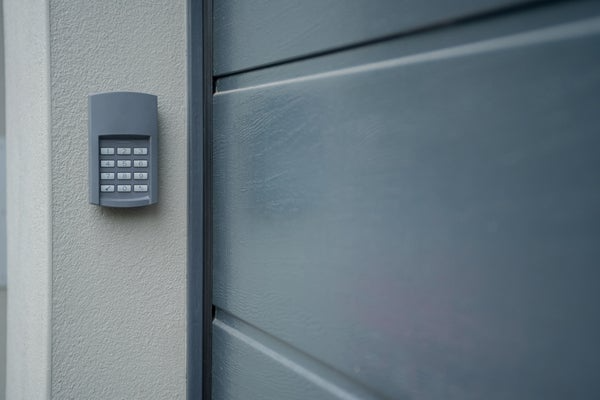

If cleaning the button doesn’t do the trick, check the connections in the keypad housing. You’ll need to replace the keypad if you see any frayed connections.
Finally, make sure the wiring around the opener button is not compromised. If there are bare spots in the wiring insulation anywhere along the length of the wire, it could short-circuit and force the garage door to open and close by itself.
3. Check the circuit board and transformer.
If the safety sensors and the operator button are working correctly and no bad wiring or connections are found, your issue may be with the circuit board in the garage door opener itself. A power surge from a lightning strike or other electrical problem can cause the circuit board and the transformer to go bad, which can result in your garage door not opening or closing properly.
If you are handy with a multimeter, you can check the voltage into and out of the circuit board and transformer. Doing so will confirm if one or both are bad and need replacing.
